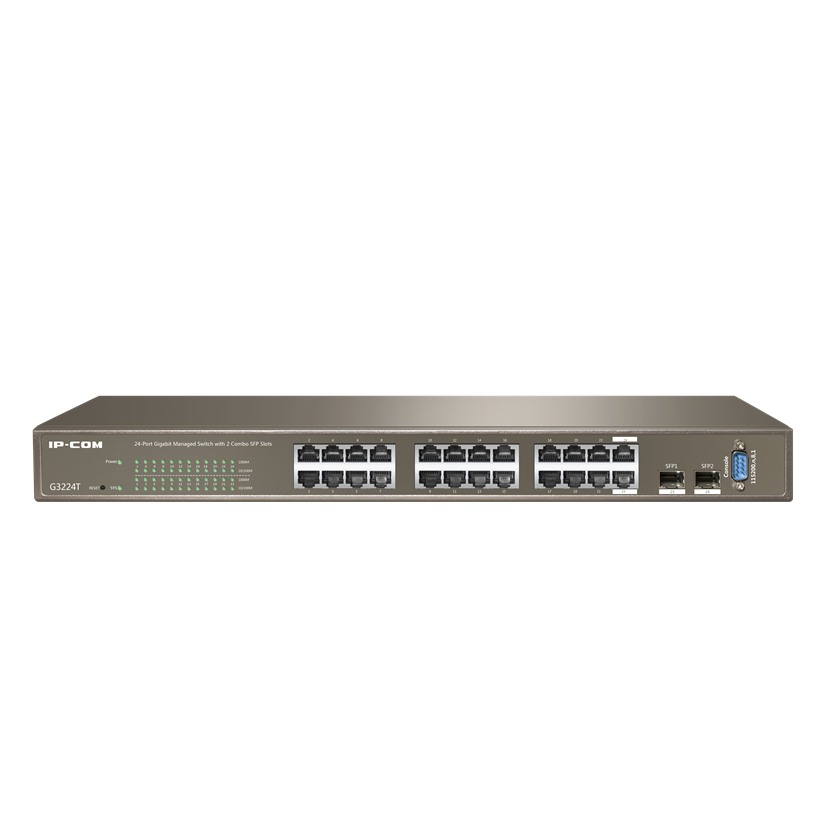

IP-COM Full Managed Switchs G3224T V1.0

Liên hệ

G3224T is GE layer 2 and non-blocked switch, designed for building high-performance GE networking. Provide 24 10/100/1000Mbps autosensing RJ45 ports and 2 GE fiber ports. Provide comprehensive security defense system, QoS and VLAN, hardware for layer 2 wire-speed switching. With powerful security capacity and rich features, the device can meet various application needs for large-sized businesses, bars, parks and data center.

● Support 24 GE Ports and 2 SFP Slots
● Support unique smart zone
● Provide full wire-speed switching
● Support L2 Link protection technology



Model No. G3224T
Description 10/100/1000 Smart Switch
Login IP address 192.168.0.1
User name\Password For administrator: admin\admin
For user: user\user
Standard and protocol supported IEEE 802.3、IEEE 802.3u、IEEE 802.3z、IEEE 802.3ab、IEEE 802.3x、IEEE 802.1D、IEEE 802.1W、IEEE 802.1Q、IEEE 802.1p、IEEE 802.1x、IEEE 802.3 NWay、SNMP
Backplane bandwidth 56Gbps
Forwarding mode and capacity Linear-speed forwarding up to 48Gbit/s
MAC Address entries 8K
Dimension 440*284*44mm(LXWXH)
3C Yes
Relative Humidity(Operational) 10%~90% RH(noncondensing)
Relative Humidity(Storage) 5%~95% RH(noncondensing)
Operating Temperature 0℃~45℃
Storage Temperature -40℃~70℃
Power Supply AC 100~240V 1.2A(Max) 50~60Hz
Power consumption <20W
Port & Module 24 GE Port and 2 SFP(combo)
Indicators POWER; SYS; LINK/ACT; SPEED; SPF
Connector and cabling CAT 5e
1000Base-SX: MMF(Multimode fiber), 1000Base-LX:SMF(Single-mode fiber)

G3224T is GE layer 2 and non-blocked switch, designed for building high-performance GE networking. Provide 24 10/100/1000Mbps autosensing RJ45 ports and 2 GE fiber ports. Provide comprehensive security defense system, QoS and VLAN, hardware for layer 2 wire-speed switching. With powerful security capacity and rich features, the device can meet various application needs for large-sized businesses, bars, parks and data center.

● Support 24 GE Ports and 2 SFP Slots
● Support unique smart zone
● Provide full wire-speed switching
● Support L2 Link protection technology



Model No. G3224T
Description 10/100/1000 Smart Switch
Login IP address 192.168.0.1
User name\Password For administrator: admin\admin
For user: user\user
Standard and protocol supported IEEE 802.3、IEEE 802.3u、IEEE 802.3z、IEEE 802.3ab、IEEE 802.3x、IEEE 802.1D、IEEE 802.1W、IEEE 802.1Q、IEEE 802.1p、IEEE 802.1x、IEEE 802.3 NWay、SNMP
Backplane bandwidth 56Gbps
Forwarding mode and capacity Linear-speed forwarding up to 48Gbit/s
MAC Address entries 8K
Dimension 440*284*44mm(LXWXH)
3C Yes
Relative Humidity(Operational) 10%~90% RH(noncondensing)
Relative Humidity(Storage) 5%~95% RH(noncondensing)
Operating Temperature 0℃~45℃
Storage Temperature -40℃~70℃
Power Supply AC 100~240V 1.2A(Max) 50~60Hz
Power consumption <20W
Port & Module 24 GE Port and 2 SFP(combo)
Indicators POWER; SYS; LINK/ACT; SPEED; SPF
Connector and cabling CAT 5e
1000Base-SX: MMF(Multimode fiber), 1000Base-LX:SMF(Single-mode fiber)
