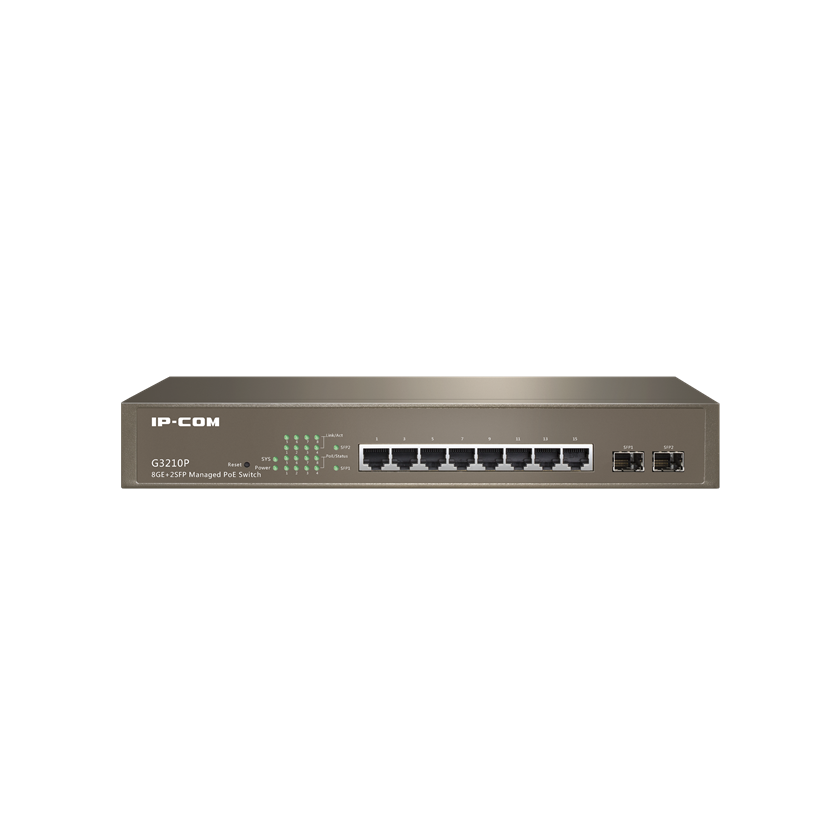

G3210P, IP-COM 8G+2SFP Managed PoE Switch is right for remote Gigabit wireless cabling and HD monitoring network. Besides with access of high performance, it provides 8 10/100/1000 Base-T Ethernet ports and 2 extra independent 1000Base-X Gigabit SFP ports. Ports 1~8 support IEEE 802.3af PoE (15.4W) or 802.3at PoE+ (30W) standard; up to 40W power output per PoE port; and can supply electricity to high-power PDs such as dual band/11AC devices; supply electricity and transmit data at the same time to AP, IP Camera or IP Phone via Cat.5e twisted-pair cables.
● 8 10/100/1000 Base-T Ethernet ports
● 2 extra independent 1000Base-X Gigabit SFP ports
● Ports 1~8 support IEEE 802.3af/at PoE standard
● up to 40W power output per PoE port
| Model No. | G3210P | ||
| Hardware Specification | |||
| Copper Ports | 8 10/100/1000Base-T RJ-45 Auto-MDI/MDI-X ports | ||
| SFP/mini-GBIC Slots | 2 1000Base-SX/LX/BX SFP interfaces (Port-9 and Port-10) Compatible with 100Base-FX SFP |
||
| Switch Architecture | Store-and-Forward | ||
| Throughout | 14.88Mpps | ||
| Address Table | 8K entries, automatic source address learning and aging | ||
| Share Data Buffer | 1.49Mpps | ||
| Flow Control | IEEE 802.3x Pause Frame for Full-Duplex Back pressure for Half-Duplex | ||
| Jumbo Frame | 9Kbytes | ||
| Reset Button | < 5 seconds: System reboot > 5 seconds: Factory Default |
||
| Dimension | 294*178.8*44 mm(W x D x H), 1U high | ||
| Weight | 1.8kg | ||
| LED | Power,PoE-Max Link/Act per Gigabit port PoE In-Use for Port-1~ 8 |
||
| Power Supply | 130W | ||
| Power over Ethernet | |||
| PoE Standard | IEEE 802.3af / at | ||
| PoE Power Supply Type | End-Span | ||
| PoE Power Output | Per Port 51V DC Max. 40 Watts |
||
| Power Pin Assignment | 1/2(+), 3/6(-) | ||
| PoE Power Budget | 115W | ||
| PoE Ability | Number of PD @ 7 Watts 8 Number of PD @ 15.4 Watts 8 Number of PD @ 30.8 Watts 4 |
||
| Layer 2 Function | |||
| Basic Management Interfaces | Telnet, Web Browser, SNMPv1, v2c | ||
| Port configuration | Port disable / enable Auto-Negotiation 10/100/1000Mbps full and half duplex mode selection Flow Control disable / enable Bandwidth control on each port Power saving mode control |
||
| Port Status | Display each port’s speed duplex mode, link status, Flow control status,Auto negotiation status, trunk status | ||
| Port Mirroring | TX / RX / Both Many to 1 monitor |
||
| VLAN | 802.1Q Tagged Based VLAN, up to 64 VLAN groups Q-in-Q tunneling Private VLAN Edge (PVE) MAC-Based VLAN Protocol-Based VLAN Voice VLAN Up to 10 VLAN groups, out of 160 VLAN IDs |
||
| Link Aggregation | IEEE 802.3ad LACP / Static Trunk Supports 5 groups of 10-Port trunk support | ||
| QoS | Traffic classification based, Strict priority and WRR 8-Level priority for switching Port Number 802.1p priority 802.1Q VLAN tag DSCP/TOS field in IP Packet |
||
| IGMP Snooping | IGMP (v1/v2) Snooping, up to 200 multicast Groups IGMP Querier mode support |
||
| Regulation Compliance | FCC,CE,RoHS | ||
| Operating Temperature | 0℃~40℃ (32℉~104℉); | ||
| Storage Temperature | -40℃~70℃ (-40℉~158℉) | ||
| Operating Humidity | 10%~90% non-condensing | ||
| Storage Humidity | 5%~90% non-condensing） | ||
