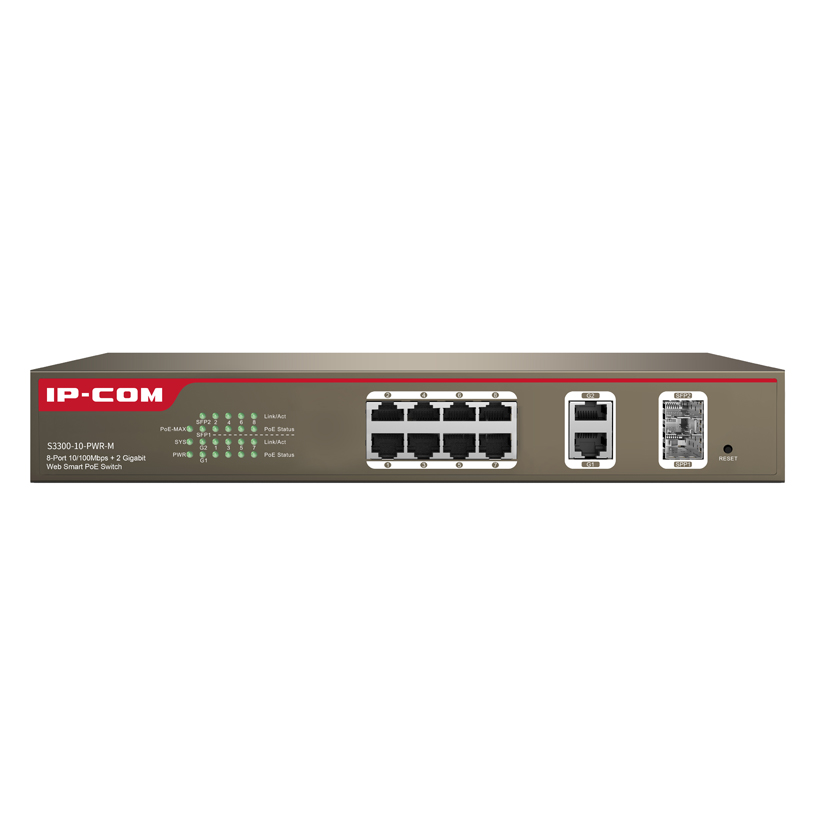

S3300-10-PWR-M is a 8-Port 10/100Mbps +2-Port Gigabit TP/SFP Combo Web Smart PoE Switch developed by IP-COM. It provides 8 10/100Base-TX RJ45 ports, 2 10/100/1000Base-T RJ45 ports and 2 1000Base-X SFP combos.
● 8 10/100Base-TX RJ45 ports, 2 10/100/1000Base-T RJ45 ports and 2 100/1000Base-X SFP combos.
● 8 10/100Base-TX RJ45 ports support PoE power supply. The total power output is up to 123W and the maximum output of a single port is 40W.
● Powerful port management functions, including port mirroring, speed limit, trunk, etc.
● Supports IEEE 802.3Q Tag VLAN.
● Supports Web, SNMP management and network diagnostics maintenance methods.
|
Hardware Feature |
|
|
Standard and protocol supported |
IEEE 802.3、 IEEE 802.3u、IEEE 802.3z、IEEE 802.3ab、IEEE 802.3x、IEEE 802.1D、IEEE 802.1W、IEEE 802.1Q、IEEE 802.3af、IEEE 802.3at |
|
MTBF |
100,000hours |
|
Indicator LEDs |
Link/Act, PoE Status,System, Power,PoE Max |
|
Fixed Ports |
8 10/100Base-TX ports |
|
lightning protection |
≥6KV |
|
Store and forward |
Yes |
|
Exchange capacity |
5.6 Gbit/s |
|
MAC address entries |
4K MAC |
|
Power supply module |
Providing 8 ports under IEEE 802.3af(15.4W) or 4 ports under IEEE 802.3at(30W) |
|
PoE through pin |
1 2 4 5 +，3 6 7 8 - |
|
Voltage input range |
AC：100－240V～ 50/60Hz |
|
Dimension（L×W×H） |
294mm*178.8mm*44mm |
|
Weight |
≤5kg |
|
Total power consumption |
<150 WPoE consumption up to 130W |
|
perating temperature |
0 ℃～40 ℃ |
|
Storage temperature |
-40 ℃～70 ℃ |
|
Relative humidity(Operational) |
10%～95%（noncondensing） |
|
Relative humidity(Storage) |
10%～95%（noncondensing） |
|
Software Feature |
|
|
PoE management |
Support setup of PoE |
|
VLAN |
Support VLAN(4K) based on ports |
|
Mirroring |
Support local mirror image |
|
Link aggregation |
Support LACP, manual link aggregation |
|
QoS |
Support message transmission for ports and limitation of speed |
|
Layer 2 ring network protocol |
Support STP/RSTP and looped Network for devices |
|
Certification |
FCC/CE/RoHS |
