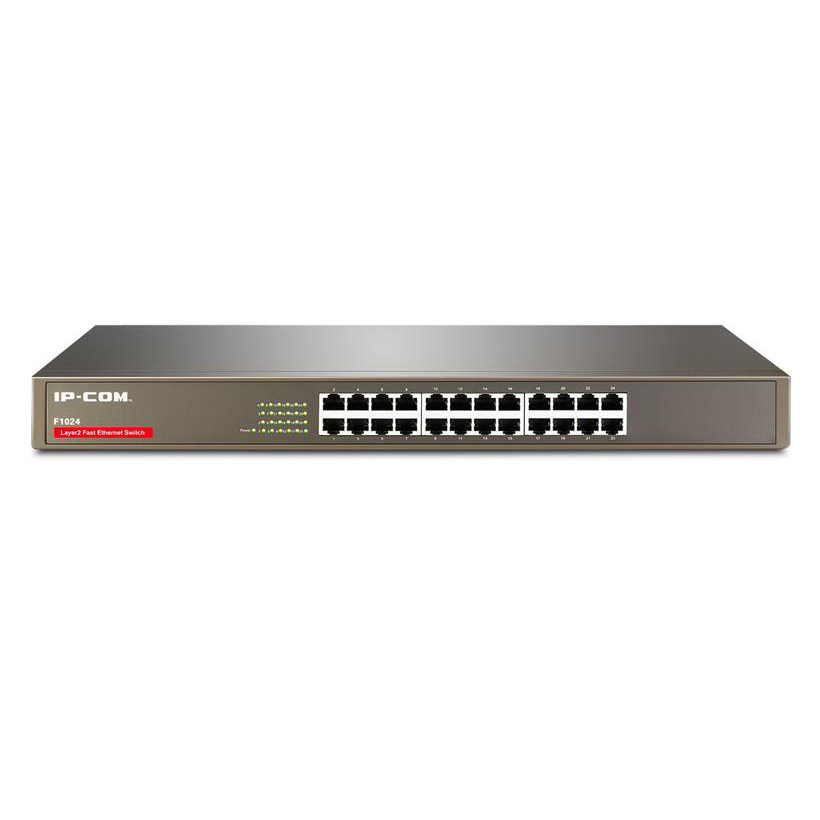

IP-COM Unmanaged Switches F1024 V5.0
Liên hệ
-
Mô tả
-
Tab tùy chỉnh
-
Nhận xét
F1024 provides 24 10/100Mbps autosensing ports and all ports support Auto MDI/MDIX for parallelwire and crosswire, making this device not only can be connection to common terminal equipments, but also can be cascade connection to other nerworking equipments to extend your networking easily.F1024 can provide you a easy, economic, high-performance solution for 100M networking, which is your ideal chioce for high-speed networking.
● Compliant with IEEE802.3 10BASE-T, IEEE802.3u 100BASE-TX standard
● Support 8K MAC address list, MAC address learning and auto-ageing
● Built-in 2.5Mb SRAM (1.75Mb for packet buffer) to ensure the accuracy of data packet
● 6000V Lightning protection for power supply
Model No. | F1024 |
Description | 24-Port Fast Ethernet Rackmount Switch |
Stardand | IEEE 802.3、IEEE 802.3u、IEEE 802.3x |
Transmission medium | UTP CAT3 or super for 10Base-T(<100m) |
UTP CAT5 for 100Base-T(<100m) | |
CAT 5e(<100m) | |
Port and module | 24 FE RJ45 Ports |
Backplane bandwidth | 4.8Gbps |
Packet forwarding rate | 3.57Mpps |
MAC address entries | 8K |
Lightning protection | 6000V for power supply |
Dimension | 440*178*44mm(L*W*H) |
Indicators | Power, Link/Act |
Power supply | AC 100V-240V ~0.3A 50/60Hz |
Power consumption | MAX 5.2W(220V/50Hz) |
Operating temperature | 10% ~ 90% (noncondensing) |
Storage temperature | 5% ~ 90% (noncondensing) |
5% ~ 90% (noncondensing) | 0℃ ~ 45℃ |
Relative humidity(Storage) | -40℃ ~ 70℃ |
