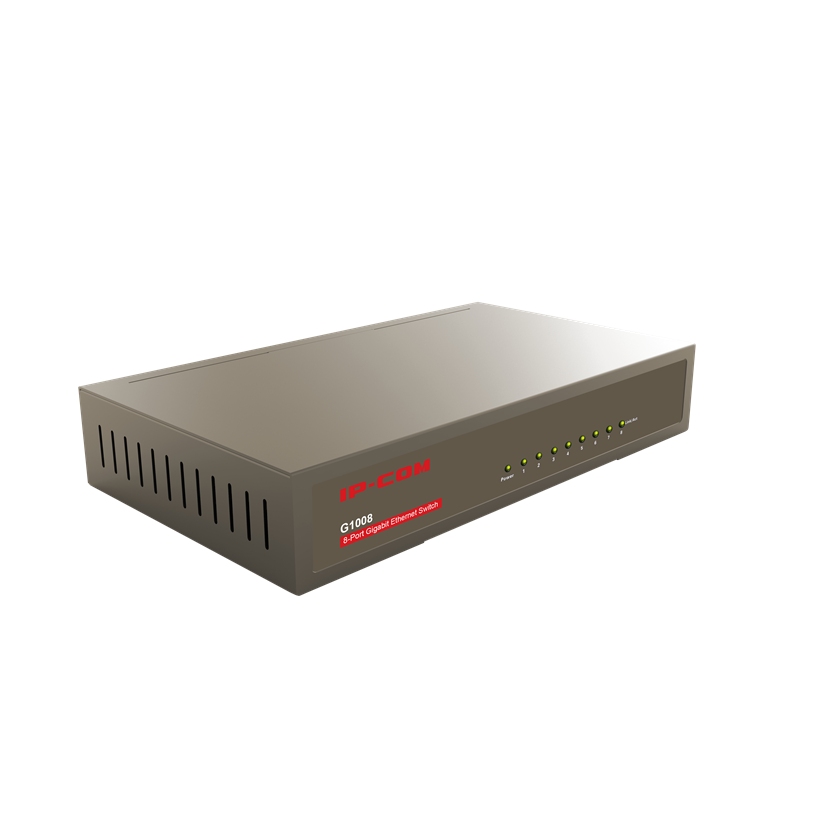

G1008 is designed by IP-COM which is specifically for video surveillance of a story full Gigabit unmanaged switch products. Provides eight 10/100 / 1000M auto-sensing ports, all ports support wire-speed forwarding rate up to 1000Mbps, lightning rating per port up to 4KV, to ensure the stability and reliability. G1008 high performance, high reliability, as you build more speed more stable gigabit-level monitoring network.
● 8 * 10/100 / 1000Mbps adaptive RJ45 port
● Support loop guard, effectively lifting loop and the second line of the loop itself
● Support port lightning, lightning protection rating of the whole port 4KV
● 9K jumbo frame support, improve network transmission efficiency
● Support for desktop / wall installation, plug and play
| Model NO. | G1008 |
| Switch | 8 Gigabit port Unmanaged Switches |
| Standard | IEEE802.3 10Base-T IEEE802.3u 100 Base-TX IEEE802.3ab IEEE802.3X |
| Port and module | 8 gigabit port(Auto MDI/MDIX) |
| Backplane bandwidth | 16Gbps |
| Packet forwarding rate | 11.9Mpps |
| MAC address entries | 4k |
| Dimension | 186.7mmX106.7mmX33.3mm(L*W*H) |
| Weight | <2kg |
| Power supply | DC 9V 600mA |
| Operating temperature & humidity | 0℃ ~45℃|10%～90%（noncondensing） |
| storage temperature & humidity | -40℃-70℃|5%~90% RH (noncondensing) |
| Port feature | Support "video surveillance" for monitoring the environment Support loopback or second line anti-ring loop port Support 4KV port Lightning proof |
