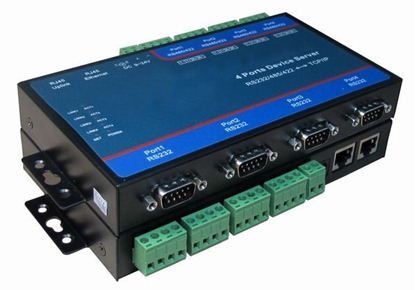

MWIS04B: 4-port RS-232/485/422 to Ethernet Modbus gateway
-
Mô tả
-
Tab tùy chỉnh
-
Nhận xét
MWIS04B là thiết bị Modbus Gateway hỗ trợ chuyển đổi hai chiều giữa giao thức Modbus RTU và Modbus TCP của hãng UPCOM. Thiết bị được thiết kế theo chuẩn Công nghiệp và cho phép chuyển đổi 4 cổng S232/485/422 sang Ethernet. MWSI04B có 4 cổng RS232/485/422 và 2 cổng 10/100 Base-Tx Ethernet.
Tính năng sản phẩm:
1. Support 4 port RS-232/485/422 to Ethernet
2. Support 1200 bps to 460800 bps non-blocking communication line speed
3. Support TCP Server, TCP Client, UDP mode
4. Support CTS/RTS hardware flow control
5. Supports virtual serial and searching device or modifying parameters
6. Provide device management library (Window DLL library)
7. With build-in Web server, its parameters can be modified by web browse
8. Support DHCP, easy for IP management and solve IP confliction
9. Support DNS. It fulfills the need of access data server through domain name
10. UDP mode support dynamic destination address mode.
11. Support full duplex, high speed converting, simultaneously converting large bulk of data with no pause, and no data is lost
12. Build-in 2 KV electrical plus protection in RJ45
13. High protection of electromagnetic interference, with its high electromagnetic interference protection SECC external shell.
14. Supports Windows 2000/XP/WIN7/WIN8/WIN10
15. Working temperature: -40～85℃
Thông số kỹ thuật:
|
Interface |
|
|
Serial |
RS232,RS485,RS422 |
|
RJ45 |
Networking connecter; Power plug-in or terminal |
|
Communicate interface |
|
|
Ethernet |
10M/100M, 2KV electrical plus protection |
|
Serial |
RS232/RS485/422：RXD,TXD,GND,CTS,RTS |
|
Serial parameters |
|
|
Band rate |
1200~460800bps |
|
Parity |
None, Odd, Even, Mark, Space |
|
Data size |
5~9 |
|
Flow control |
CTS/RTS,DTR/DSR,XON/XOFF |
|
Software |
|
|
protocol |
ETHERNET, IP, TCP, UDP, HTTP, ARP, ICMP, DHCP, DNS, |
|
Setting method |
ZLVirCom, WEB browser, device management library |
|
Net communication method |
Socket, Virtual serial , device management library |
|
Work mode |
TCP server, TCP client, UDP, Real Com Driver |
|
Power |
|
|
Input voltage |
9-24V DC |
|
Power consumption |
4W |
|
Working temperature |
-40~85℃ |
|
Storage temperature |
-40~120℃ |
|
Relative humidity |
5%~95%（non-condensing） |
|
Shell |
IP40 protection, metal shell |
|
Installation |
DIN-Rail |
|
Weight |
1000g |
|
Size (L×W×H) |
197mm*92mm*25mm |
|
Standard |
|
|
EMI |
FCC Part 15,CISPR (EN55022) class A |
|
EMS |
EN61000-4-2 (ESD), Level 3, EN 61000-4-4 (EFT) Level 3, EN 61000-4-5 (Surge) Level 2, |
|
Shock |
IEC 60068-2-27 |
|
Free fall |
IEC 60068-2-32 |
|
Vibration |
IEC 60068-2-6 |
|
Warranty |
|
|
Warranty time |
3years |
|
Certificates |
CE, FCC, RoHS |
