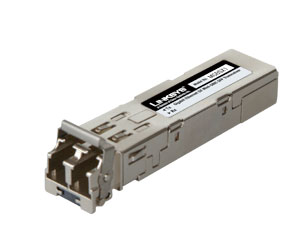

Gigabit SX Mini-GBIC SFP Transceiver Cisco MGBSX1

Gigabit SX Mini-GBIC SFP Transceiver Cisco MGBSX1

Liên hệ

Mô tả
Tab tùy chỉnh
Nhận xét

- 1000BASE-SX SFP transceiver, for multimode fiber, 850 nm wavelength, support up to 550 m

Features

- Built-in spring latch for easy module removal

- Hot swappable

- Low insertion-loss duplex LC receptacle

- Low electromagnetic interference (FCC Part 15, Class B) for clear communications

- Meets FDA and International Electrotechnical Commission (IEC) eye safety standards

Specifications
Media	Multimode fiber (MMF)
Application	1000BASE-SX
Connector type	Duplex LC
Wavelength typical (Tx)	850 nm
Wavelength range (Rx)	850 nm
Performance
Maximum distance	up to 550 m
Average output power	-9.5 dBm to -4 dBm
Receiver sensitivity	-20 dBm (typ)
Receiver overload	-0 dBm
Environmental
Dimensions W x H x D	13.4 x 8.5 x 56.5 mm (0.53 x 0.33 x 2.22 in.)
Unit weight	0.018 kg (0.63 oz. )
Power	1W (max)
Operating temperature	32º to 158ºF (0º to 70ºC)
Storage temperature	-40º to 185ºF (-40º to 85ºC)
Operating humidity	10% to 85% noncondensing
Storage humidity	5% to 90% noncondensing
Standards
Compliance	FCC Part 15 Class B
	EN55022 Class B (CISPR 22B)
	VCCI Class B
Safety	FDA 21 CFR 1040.10 and 1040.11
Safety	EN60950, EN (IEC) 60825-1,2
